How much does concrete roof tile weigh per square?
Westlake concrete tile installs at 8.79 to 10.3 lb per sq ft, about 880 to 1,030 lb per square, and Eagle lists 970. Here is what that weight means for loading.
The short answer
A square of installed concrete roof tile (100 square feet) weighs about 880 to 1,030 pounds across the five Westlake profiles in MMJ's published projects, from the July 2026 QAI listing. Eagle Roofing lists 970 pounds for its standard-weight profiles at 88.5 tiles per square, and 720 for its Eaglelite tile.
How much does each concrete tile profile weigh?
These are the five Westlake Royal Newpoint profiles in MMJ's published projects. Installed weight per square foot times 100 gives the weight per square.
| Profile | Tile size | Weight per tile | Installed weight per sq ft | Weight per square | MMJ job |
|---|---|---|---|---|---|

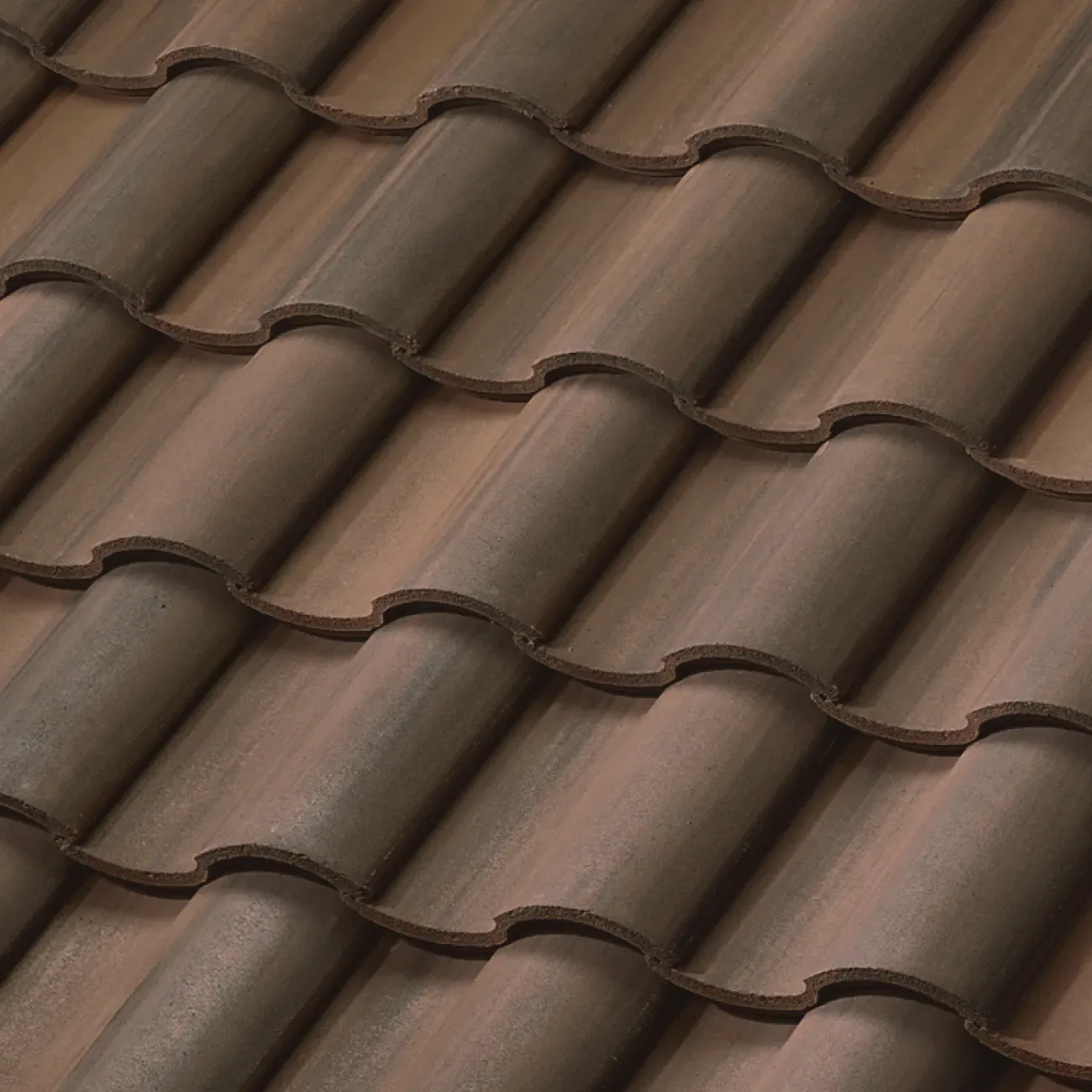

| Barcelona 900 | 17 × 12.375–13 in | 9.7–10.6 lb | 9.0–9.5 lb | 900–950 lb | Lake Wales to Boca Raton |
| Saxony 900 (Slate and Split Slate) | 16.5–17 × 13 in | 10.6–10.9 lb | 9.1–10.3 lb | 910–1,030 lb | Pompano Beach and Okeechobee to Jupiter |
| Villa 900 | 16.5–17 × 13 in | 9.9–10.6 lb | 9.0–9.3 lb | 900–930 lb | Okeechobee to West Palm Beach |
| Madera 900 | 13.5 × 13 in | 7.9 lb | 9.6 lb | 960 lb | Okeechobee to North Palm Beach |
| Estate | 16.5 × 13 in | 9.71 lb | 8.79 lb | 879 lb | Okeechobee to Delray Beach |
What does Eagle list per square?
Eagle Roofing Products publishes tiles and weight per 100 square feet, with separate Florida weights for two profiles.
| Profile | Tiles per square | Standard weight | Eaglelite | Florida weight |
|---|---|---|---|---|
| Bel Air, Golden Eagle, Ponderosa | 88.5 | 970 lb | 720 lb | Not listed |
| Sequoia, Tapered Slate | 88.5 | 970 lb | Not listed | Not listed |
| Capistrano | 88.5 | 900 lb | 570 lb | 880 lb |
| Malibu | 88 | 903 lb | 550 lb | 770 lb |
Why does a lighter tile not always mean a lighter roof?
Madera 900 is the lightest piece in the Westlake table at 7.9 lb, yet it installs at 9.6 lb per square foot, heavier than Barcelona 900 or Villa 900. The Madera tile is 13.5 inches long against 16.5 to 17 inches for the others, so a square takes more pieces. Quote and load from the weight per square, not the weight of one tile.
How much tile weight goes on one roof?
Multiply the roof's squares by the profile's weight per square. Across the five Westlake profiles above that is 879 to 1,030 lb a square.
27,000 to 28,500 lb of installed tile on 30 squares of Westlake Barcelona 900.
Published installed weights only. Field, trim and ridge counts, waste and pallets come from the supplier's release.
| Roof size | Tile weight |
|---|---|
| 20 squares | 17,580 to 20,600 lb |
| 30 squares | 26,370 to 30,900 lb |
| 40 squares | 35,160 to 41,200 lb |
How much does a pallet of roof tile weigh?
Neither the QAI listing nor Eagle's specification page publishes pieces or squares per pallet, so a pallet weight cannot be read from them. Westlake pallets carry a label with the manufacturer's name, the tile profile and an SAP number, and the supplier's release gives the pallet count for the order. Send the profile and the squares or pallet count with the request.
What does the weight mean for loading?
Every square lifted is close to half a ton. The FRSA-TRI Florida High Wind tile manual (7th edition, effective 31 December 2023) says to distribute stacks of tile uniformly, not in concentrated loads, to install temporary battens to help roof loading when conditions warrant, and to protect the underlayment while tile is loaded and stacked. Whether a deck can carry tile is the roofing contractor's and the designer's call.

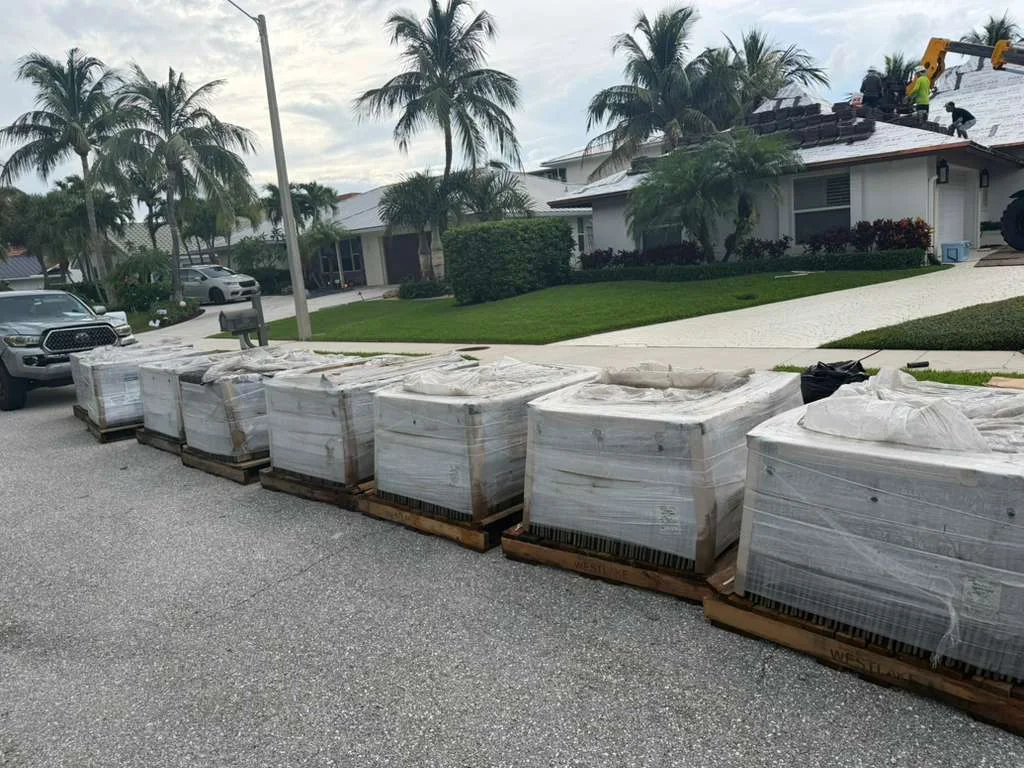

On MMJ's published jobs the telehandler lifted the tile and the load was split into bundles and working rows across the roof planes. The roof tile loading machine page walks through the steps.
More questions crews ask
What is a roofing square?
100 square feet of roof surface. Eagle lists its tile counts and weights per 100 square feet, and QAI's installed weight per square foot times 100 gives the same unit.
How many concrete tiles are in a square?
Eagle lists 88.5 tiles per square for most of its profiles and 88 for Malibu. The QAI listing for Westlake tile gives weight per tile and per square foot, but no count per square.
How much lighter is lightweight concrete tile?
Eagle lists 720 lb per square for the Eaglelite versions of Bel Air, Golden Eagle and Ponderosa, against 970 lb for its standard weight.
Does MMJ need the tile weight to quote a job?
MMJ needs the profile and the squares or pallet count, and the weight follows from those. Tile product, quantity and pallet information are part of every loading review.
Sources
- QAI Listing B1044-2, Edition 10: Westlake Royal Roofing concrete roof tiles. Tile size, mass per tile and installed weight per square foot by profile; pallet label contents (last revised 17 July 2026)
- Eagle Roofing Products technical specifications. Tiles and weight per 100 square feet by profile, including Florida weights (read 16 October 2026)
- FRSA-TRI Florida High Wind Concrete and Clay Tile Installation Manual, 7th Edition. Distribute stacks uniformly and protect the underlayment during loading (effective 31 December 2023)
- MMJ project case studies. The tile profiles and routes in the first table (published 28 August to 24 September 2026)
